1500mm 3mm automatic steel coil cut to length machine in Kyrgyzstan simple cutting machine

Name: 1500mm 3mm automatic steel coil cut to length machine in Kyrgyzstan simple cutting machine
Brand: IRONSTAR
Price: 1 USD

China 1500mm 3mm automatic steel coil cut to length machine in Kyrgyzstan simple cutting machine wholesale

Brand Name : IRONSTAR

Place of Origin : CHINA

Contact Now

1500mm 3mm automatic steel coil cut to length machine in Kyrgyzstan

Short Description:

Cut to length machine control by PLC, it can cut to any length as your want, more flexible and easy operate. Price cheap, Cut to length machine width common include 1m, 1250mm, 1.5m, material use PPGI or GI material, thickness between 0.3-3 mm, machine details is like up type:

We sell lots of such machine to India, Thailand, Russia, Saudi Arabic, Oman etc, Size can customize can your need size

Cut to length machine | metal cut to length machine | sheet metal cutting machine | simple cutting machine

Raw material:Galvanized steel or PPGI
Warranty:3 years
Export port:Tianjin port
Payment Terms:T/T, L/C, D/A, D/P
Container:20 feet container
Working days:20 working days

Diameter of cut to length roll forming machine

NO	Type		Specification
1	Raw material	Type	Galvanized steel or PPGI
		Feeding width	1250/1220/1200/1000mm or as customer' need
		Thickness	1-3 mm
2	Decoiler	Operation	Manual
2	Decoiler	Weight apacity	5 Tons
3	Main body	Roller station	top 5 rows down 6 rollers
		Diameter of shaft	110 mm
		Shaft material	45# with 0.05mm chrome
		Roller material	45# with 0.05mm chrome
		Frame	Steel plate welding
		Frame thickness	40 mm
		Machine size	About 322 m
		Machine weight	About 2.5 tons
		Machine color	As customer need
		Operation	Hydraulic automatic
		Working speed	Common speed 8-20 m/min
4	Cutter	Hardness	50-65 HRC
		Cutting tolerance	± 1mm
		Material	Cr 12
		Operate	Hydraulic cutting
5	Power	Driving way	Chain 1 inch
		Main motor	5.5 KW
		Cutter pump motor	5.5 KW
		Voltage	380V/50HZ, 3 phase or as customer' request
6	Control box	Electric box	PLC control system, inventer
		Screen	Touchable screen
		PLC brand	Delta made in Taiwan
		Inverter brand	Delta made in Taiwan or SAJ
		Language	Chinese and English or as customer' request
7	Stacker	Operation	Manual
7	Stacker	Length	2-3 m

Cut to length machine

1500mm 3mm automatic steel coil cut to length machine in Kyrgyzstan simple cutting machine

Packing & Payment & Service

1). Packing method: Nude, seller should guarantee equipment will be moisture-proof, anti corrosive, and will not be damaged during transportation.

2). Payment Term: 30% of total contract value paid by T/T, last 70% paid by T/T after inspection by buyer in seller’s factory while before delivery.

3). Delivery Time: The seller guarantees the equipment will be ready for shipment within 20 working days after receipt of deposit from the buyer.

4). Service: We could send technician to your country to fix the machine if you need. The buyer need to pay for all the cost, including: visa, round trip tickets, accommodation, salary of USD 120 per day.

5). Warranty: 36 months During warranty, the replaceable parts are free, but the buyers need to pay for the shipping fee.

6). Package: One complete equipment needs a 20 feet container to hold.

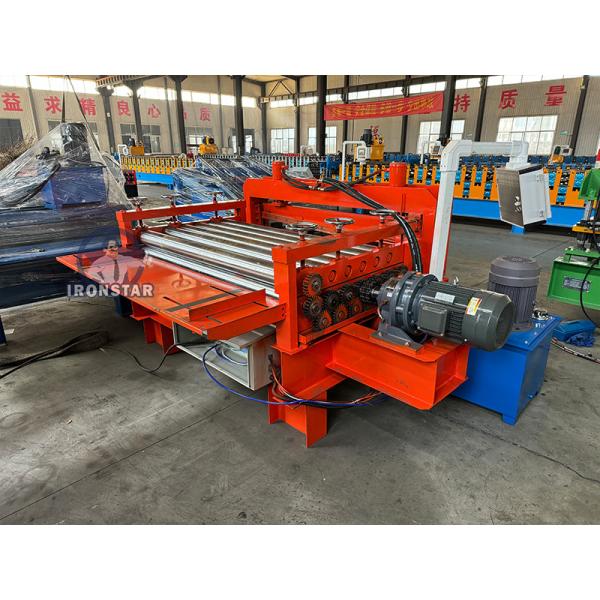

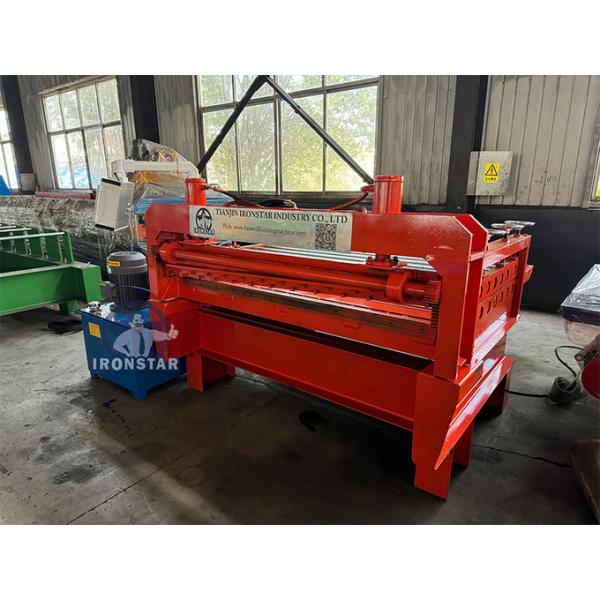

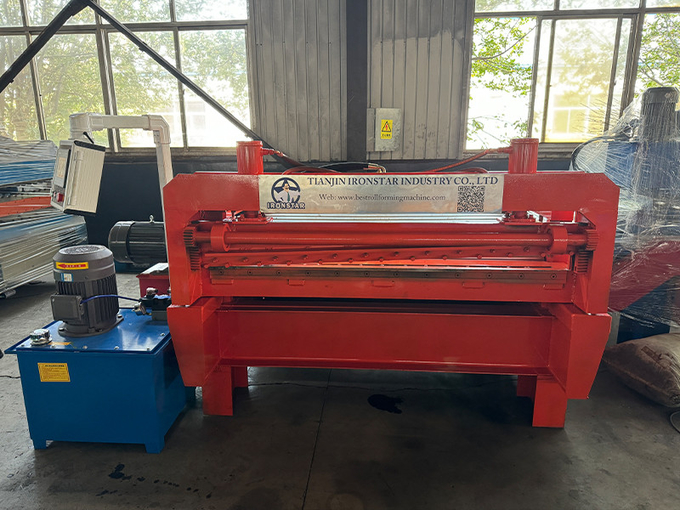

1500mm 3mm automatic steel coil cut to length machine in Kyrgyzstan simple cutting machine Images
